Thanks to the digital display tachometer, the speed is clear and easy to adjust. With a wide lineup, we can handle various liquids from low viscosity to high viscosity.
Menu
Thanks to the digital display tachometer, the speed is clear and easy to adjust. With a wide lineup, we can handle various liquids from low viscosity to high viscosity.

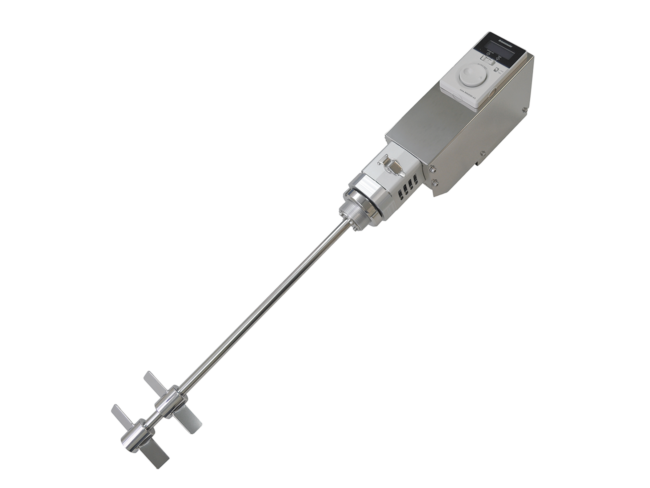

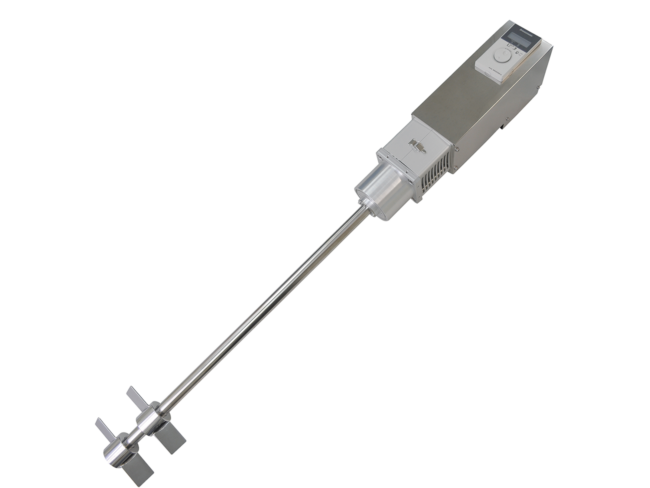

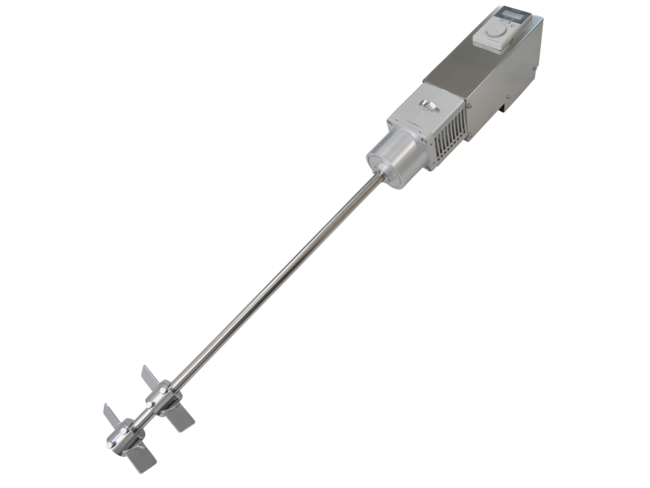

| Type of Series | KB30/30E Series | KB60/60E Series | KB120/120E Series | KB200/200E Series |
 |
 |
 |
 |
|
| Wattage (output) | 30 | 60 | 120 | 200 |
| Reduction ratio | 10 | 10 | 10 | 20 |
| Torque (N·m) | 0.65～0.9 | 1.3～1.8 | 2.6～4.1 | 8.6～11.5 |
| Speed (rpm) | 8～400 | 8～400 | 8～400 | 4～200 |
| Speed control | Standard Specifications (digital display) | Standard specifications (digital display) | Standard specifications (digital display) | Standard specifications (digital display) |
| Shaft | φ12 | φ15 | φ20 | φ25 |
| Power | Single Phase 100~120V(50/60Hz) | Single phase 100~120V(50/60Hz) | Single phase 100~120V(50/60Hz) | Single phase 100~120V(50/60Hz) |
| Mounting On The Lid | Lock Nut | Lock Nut | Bolted | Bolted |
※ The E of each model is an E coupling specification.
※ The torque and rotation speed are values for the reduction ratio in the table.
