This is an air motor agitator that can be used safely in explosion-proof areas.
Menu
This is an air motor agitator that can be used safely in explosion-proof areas.
| Model | KY-110 | KY-215 | KY-330 |
 |
 |
 |
|
| Maximum Operating Air Pressure | 0.6MPa | 0.6MPa | 0.6MPa |
| Maximum Power Output | 73.5W | 125W | 228W |
| Maximum Torque (N·m) | 0.637 | 1.37 | 2.94 |
| Maximum rpm | 1,100 rpm (variable) | 900rpm (adjustable) | 750rpm (adjustable) |
| Minimum practical speed | 220rpm or so | 180rpm or so | 150rpm or so |
| Air consumption (at maximum torque) | 200ℓ/min | 260ℓ/min | 400ℓ/min |
| Shaft | φ12 | φ12 | φ12 |
| Standard stirring blades | 2 blades or 2 4-blade | 2 blades or 2 4-blade | 2 blades or 2 4-blade |
※ The coupling part is protected by a safety cover for all models.

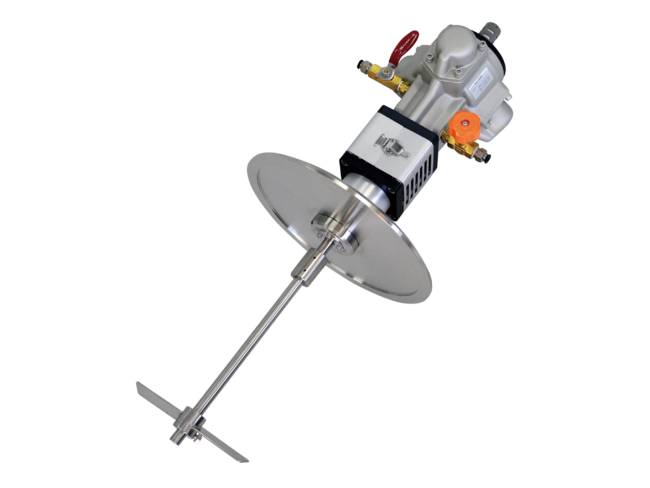

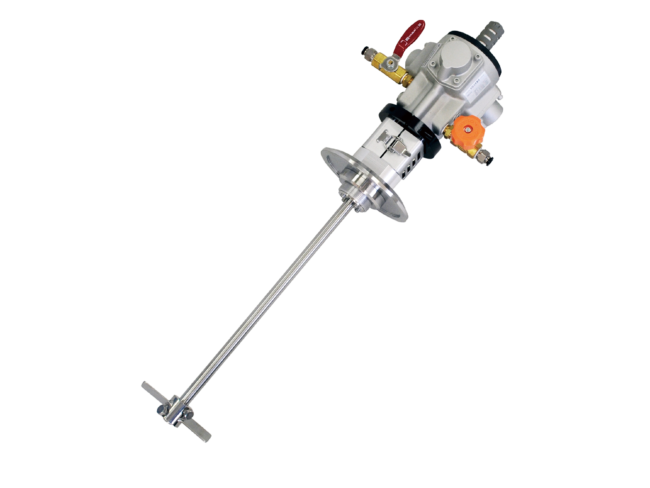

※ In the photo, the KY-110 is the standard type, and the KY215 and KY330 are E type (optional), and the shaft can be removed from under the lid.
