H Series Electrolyte Compatible Type Wet Cup Specification [Servo Motor Driven]

It is a wet cup specification of the H series. It is mainly ideal for filling liquids that crystallize when exposed to air. The wetted part is a precision structure based on the B series.

By using the drive unit to drive a servo motor, each setting can be quantified and reconfigured is easy
Stable operation at low speeds, which is difficult with air drives, is possible
It is easy to link with other equipment, and is ideal for equipment manufacturers who coordinate the entire equipment
By preparing the motor and controller by the customer, it is easy to customize it according to the application
By selecting a motor that is easy to procure in the country of use, you can reduce the anxiety of procuring motors and control equipment

It is ideal for filling large batteries with electrolytes, which crystallize when exposed to air, such as when filling electrolytes.

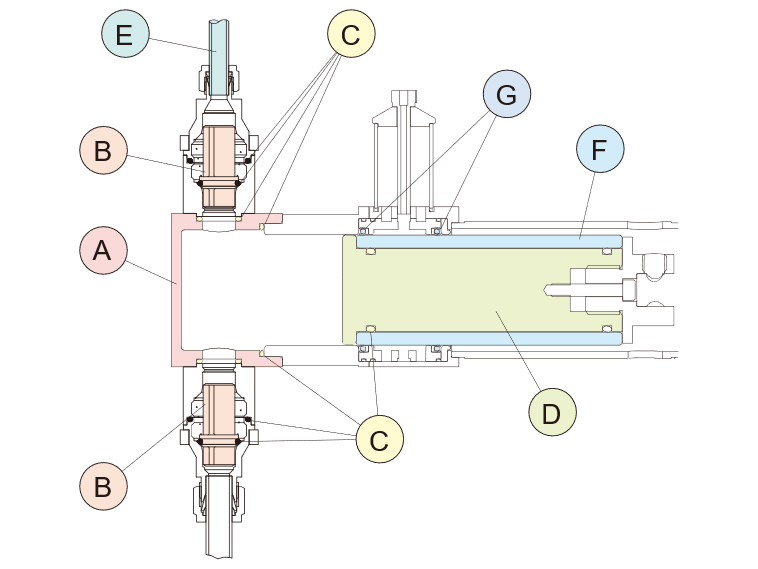

Material of wetted parts

Wetted part name	Material Name
A. Pump head	SUS316
B. Poppet	PTFE、POM
C. O-ring	EPDM, FKM, Silicone, CR, FFKM, Kalrez ®
D. Plunger	PTFE, Polypropylene
E. Tube	Polyethylene, PFA
F. Sleeve	SUS316
G. Plunger Seal	Outside: PTFE, UHMW Inside: EPDM, FKM, Silicone, CR, FFKM, Kalrez ®

* Kalrez® is a trademark or registered of DuPont Corporation or its affiliates.

List of Models

MODEL	Overall length dimension (mm)*1	Weight (kg)*1	Maximum discharge rate (cc)
4S1-C-W58-□□□□	(425)	10	～58.12
4S2-C-W116-□□□□	(475)	11	～116.24
4S3-C-W174-□□□□	*2	*2	～174.35
4S4.5-C-W260-□□□□	(660)	14	～260.53
5S3-C-W500-□□□□	(855)	37	～542.97
