H Series Rotary Valve Type [ROBO Cylinder Motor Drive]

It is about 3~2,000cc and is suitable for quantitative discharge of about 5,000~50,000cps. The ceramic rotary valve design also has excellent durability. It adopts servo-controlled pulse motor drive.

By using a pulse motor drive for the drive unit, it can be operated at a stable speed from low speed, and each setting can be easily reconfigured by quantifying each setting.
Data input and management can be easily performed on a general-purpose PC.
You can check the settings and operation of each pump from a PC, and you can easily change data and check operation on site by connecting to the teaching box (accessory).
Since the drive unit and controller are separated, it can be controlled away from the work atmosphere and maintenance is easy.
Stroke/speed settings can be made on a PC or external control device.

Dispensing fixed volume of high viscosity materials such as grease, adhesives etc
Precision filling of fixed volume of high viscosity food such as ketchup, jam etc
Precision filling of fixed volume of high viscosity medicine and cosmetics such as creams, ointment etc
Low speed and variable speed of coating of various kinds of liquid medicine

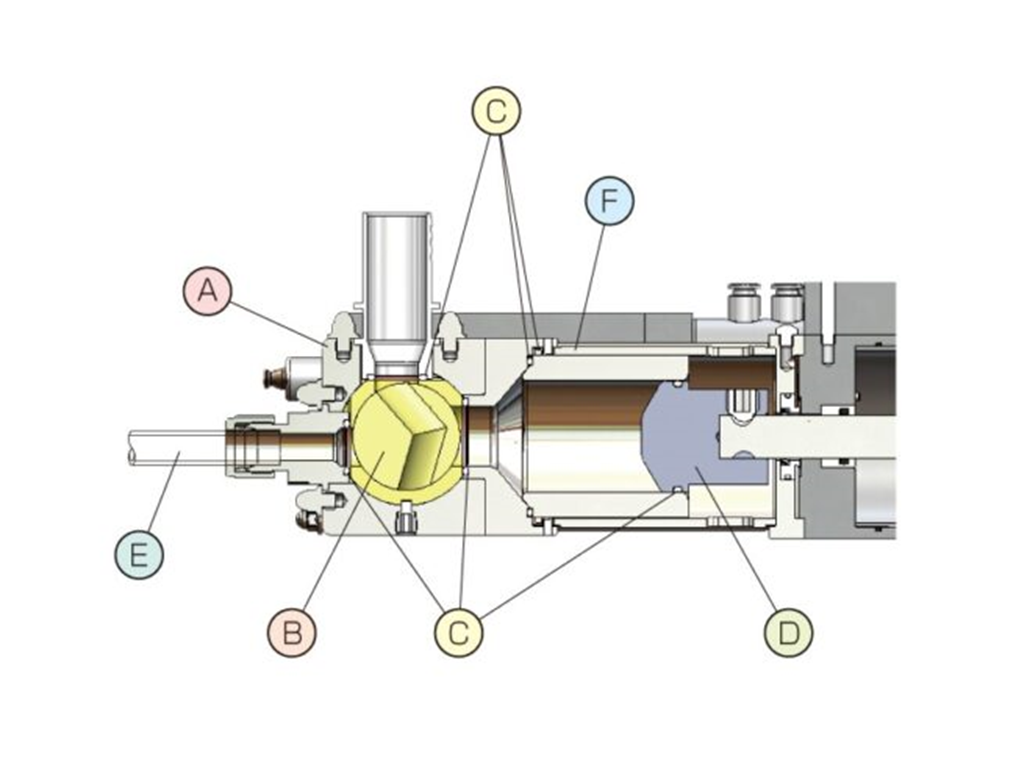

Material of wetted parts / 4HR, 5HR

A. Pump head	SUS316
B. Rotary valve	Zirconia Ceramic
C. O-ring	EPDM, FKM, Silicone, CR, FFKM, Kalrez ®
D. Plunger	SUS316
E. Tube	Polyethylene, PFA
F. Plunger sleeve	SUS316

* Kalrez® is a trademark or registered of DuPont Corporation or its affiliates.

List of Models

MODEL	Total length dimensions*	Weight	Maximum discharge rate
	(mm)	(kg)	(cc)
4H1-R∗-10DD	518	11	～9.7
4H1-R∗-33DD	493		～33.4
4H1-R∗-58DD	493		～57.2
4H2-R∗-19DD	569	10.5	～19.4
4H2-R∗-67DD	518		～66.9
4H2-R∗-116DD	518		～114.4
4H3-R∗-29DD	670	12	～29.1
4H3-R∗-101DD	594		～100.3
4H3-R∗-174DD	594		～171.6
4H4.5-R∗260DD	682	13	～261.5
5H3-R2-100HD	864	35	～101.9
5H3-R2-290HD			～291.8
5H3-R2-500HD			～542.6
5H3-R2-1000HD			～1013.6
5H6-R2-2000HD	914	37.5	～2027.2
